Proforge 4.1 Tool Changer 3D Printer
4 Print Heads | 60K mm/s² Max Acceleration | QUAD-CORE-XY | Large 400x300x400mm Print Volume | Open-Source and Hackable
The Proforge 4.1 is a large and entirely open-source high speed tool changing 3d printer.
It is capable of printing up to four different materials independantly and with out a wasteful purging tower - making it one of the fastest and most efficient multi-mateiral printers on the market today.
The motion system is a high speed QUAD-CORE-X-Y setup that is powered by a dedicated 48V PSU.
The build volume is a large 400x300x400mm, the platform has 4-point auto-tilt-adjust bed leveling and can also be fully enclosed with fume filtration.
The Proforge 4.1 is powered by Klipper, the ultimate open-source 3d printer firmware, with scope for customisation later down the line.
Proforge 4.1 Bundles
Now available for next day dispatch.

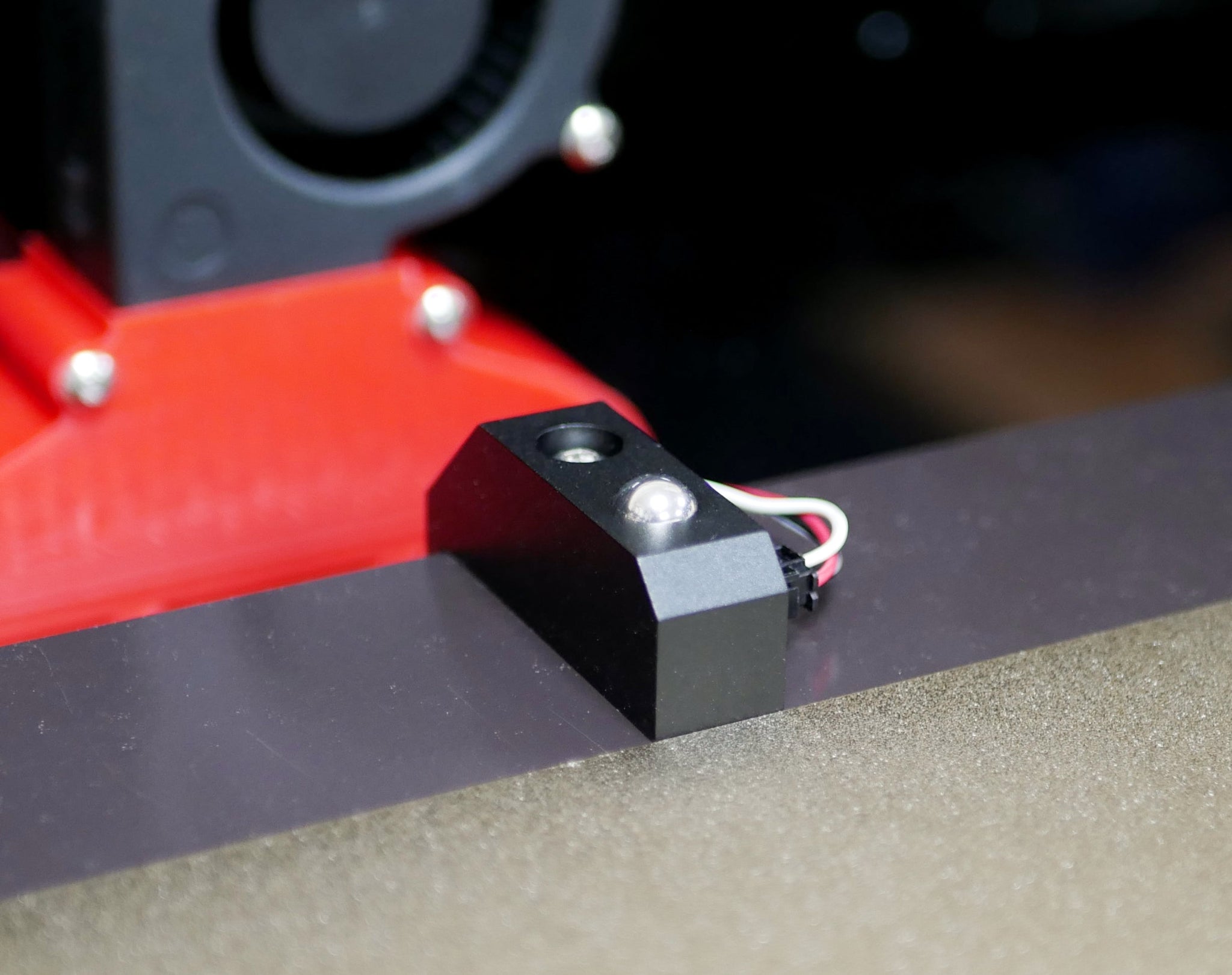

The Proforge 4.1 is the production batch version of the Proforge 4 and comes with updated hardware that resolves all of the issues from the initial batch. Also included in v4.1 is an auto-calibration tool and cable support guides (to be shipped separately when available, likely near the end of March).
Proforge 4.1
1/2/4 Print Heads
Proforge 4.1 MAX
4 Print Heads
Enclosure
Touch Screen

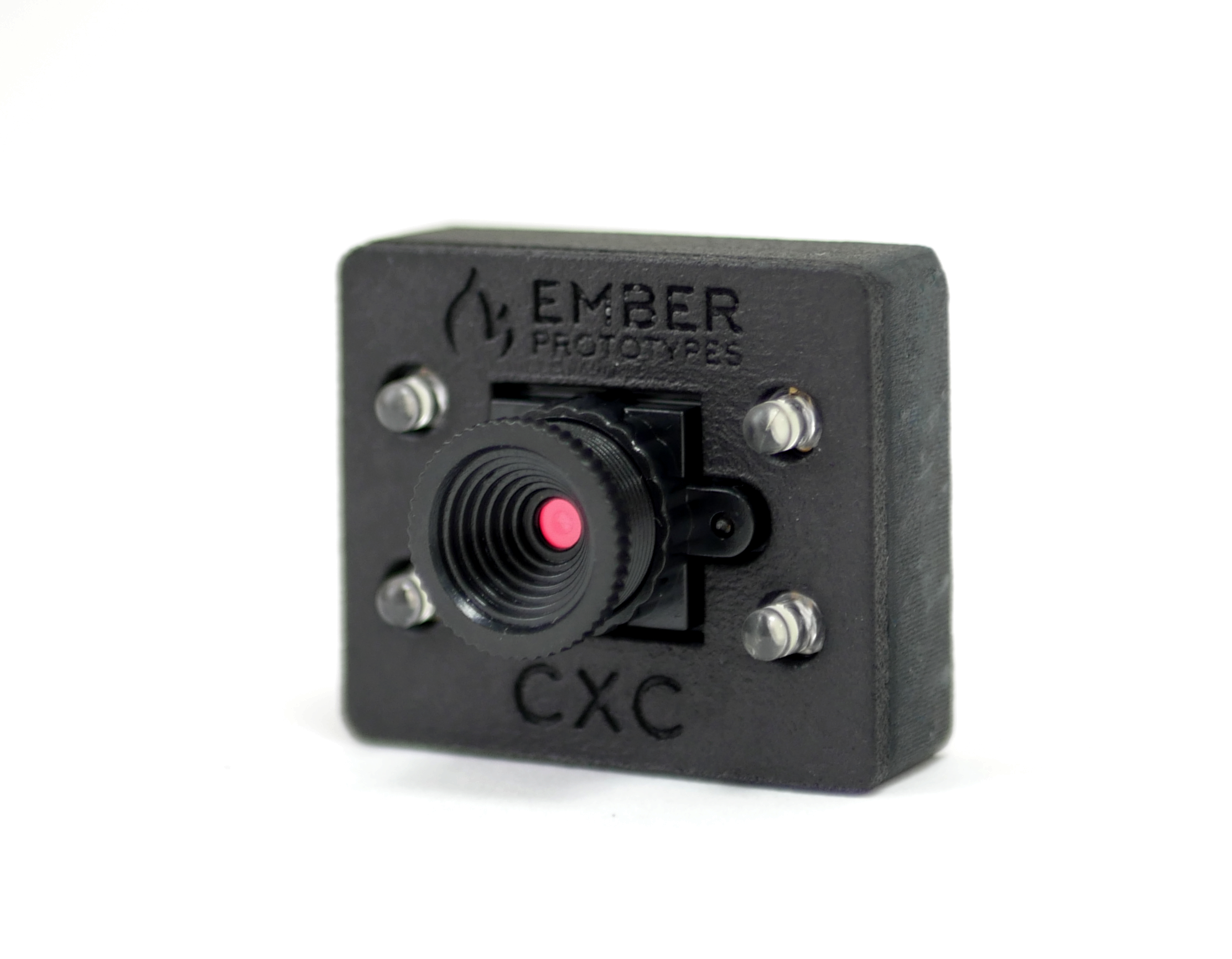

Calibration Camera
Proforge 4.1 ULTRA
4 Print Heads
Enclosure
Touch Screen
Calibration Camera
4x Obriter Filament Sensors
Oldham Coupling Set

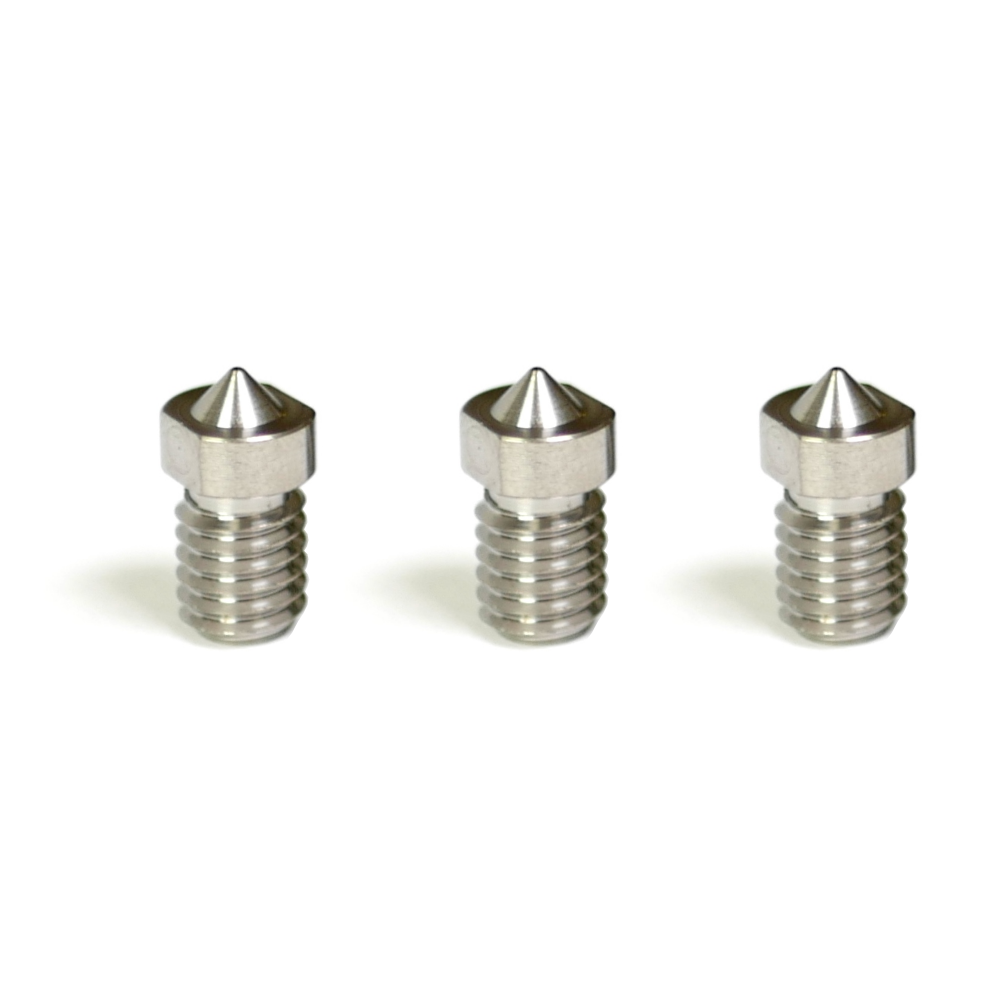

Hardened Steel Nozzles Set
Proforge 4.1 Upgrades

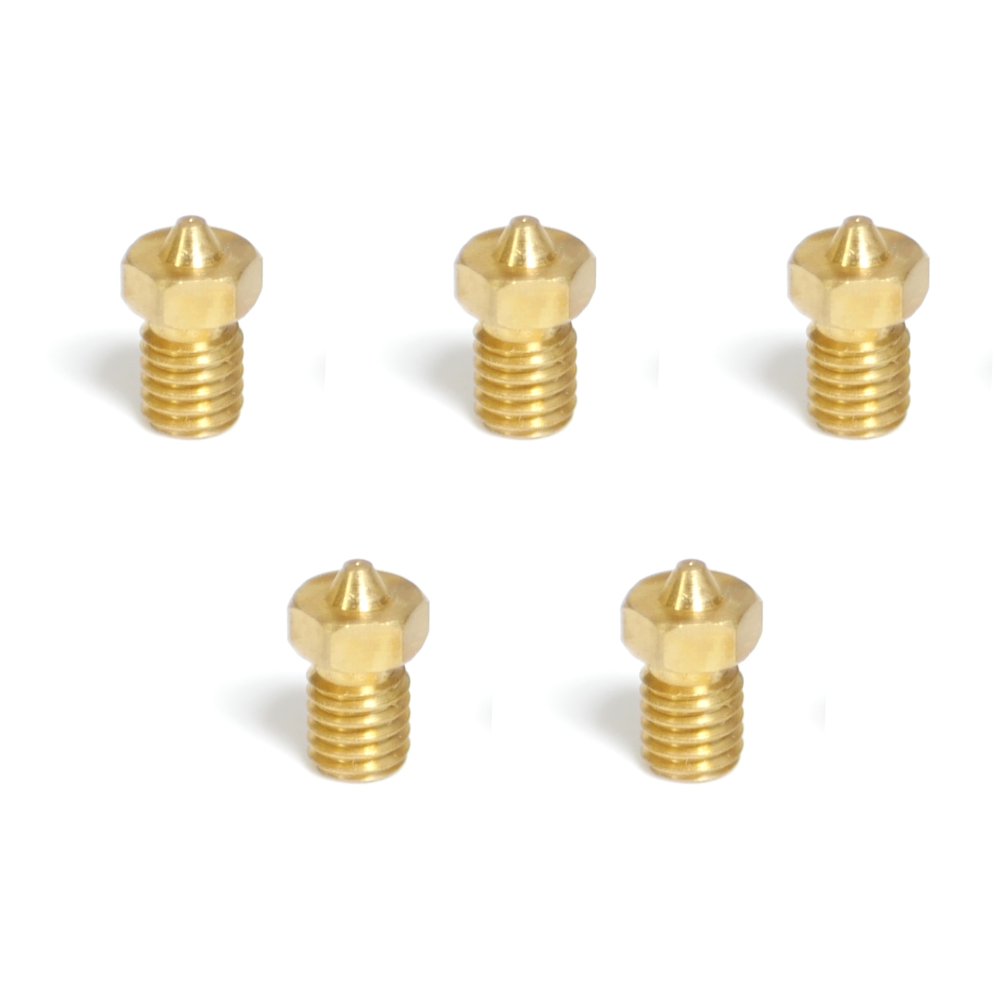

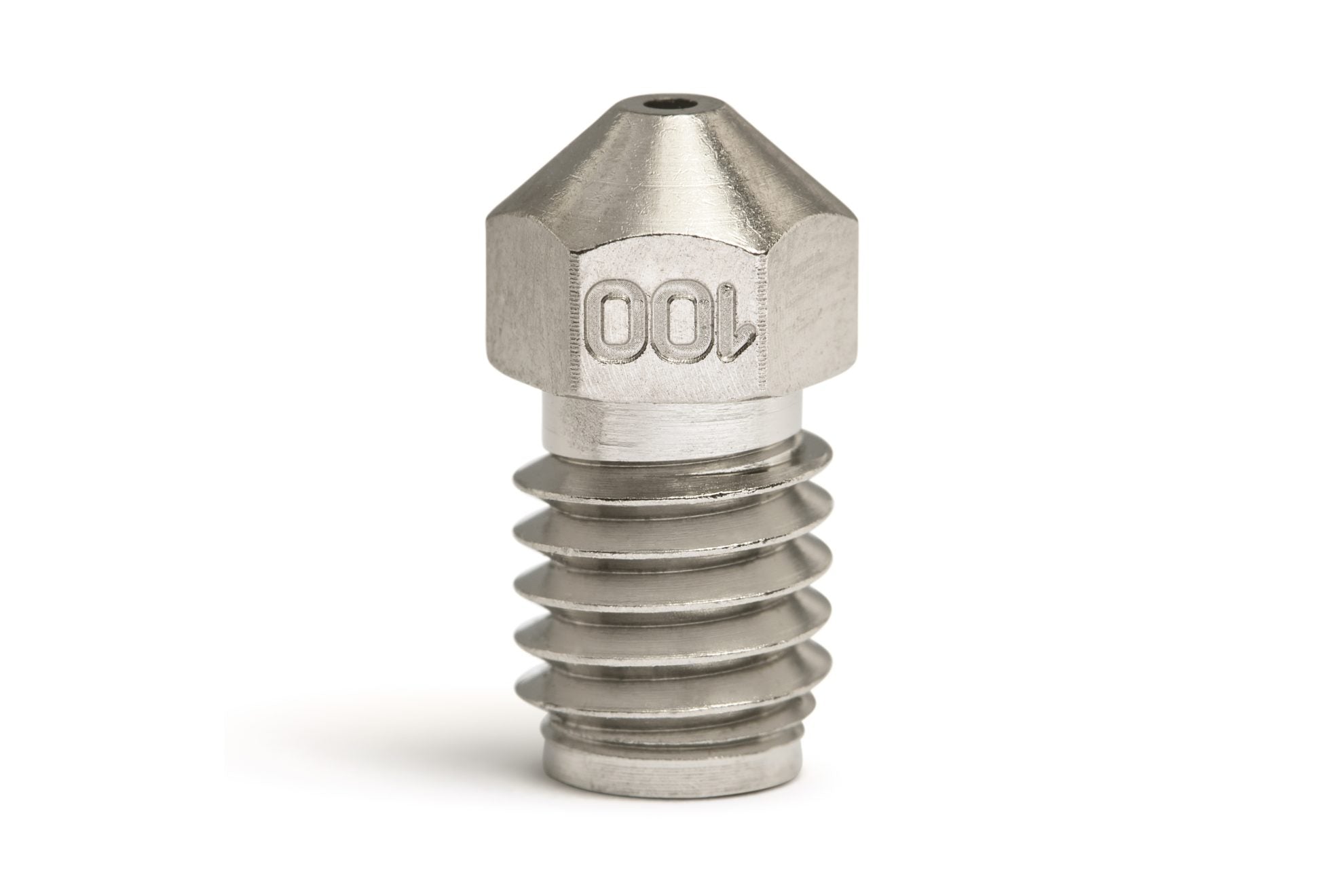

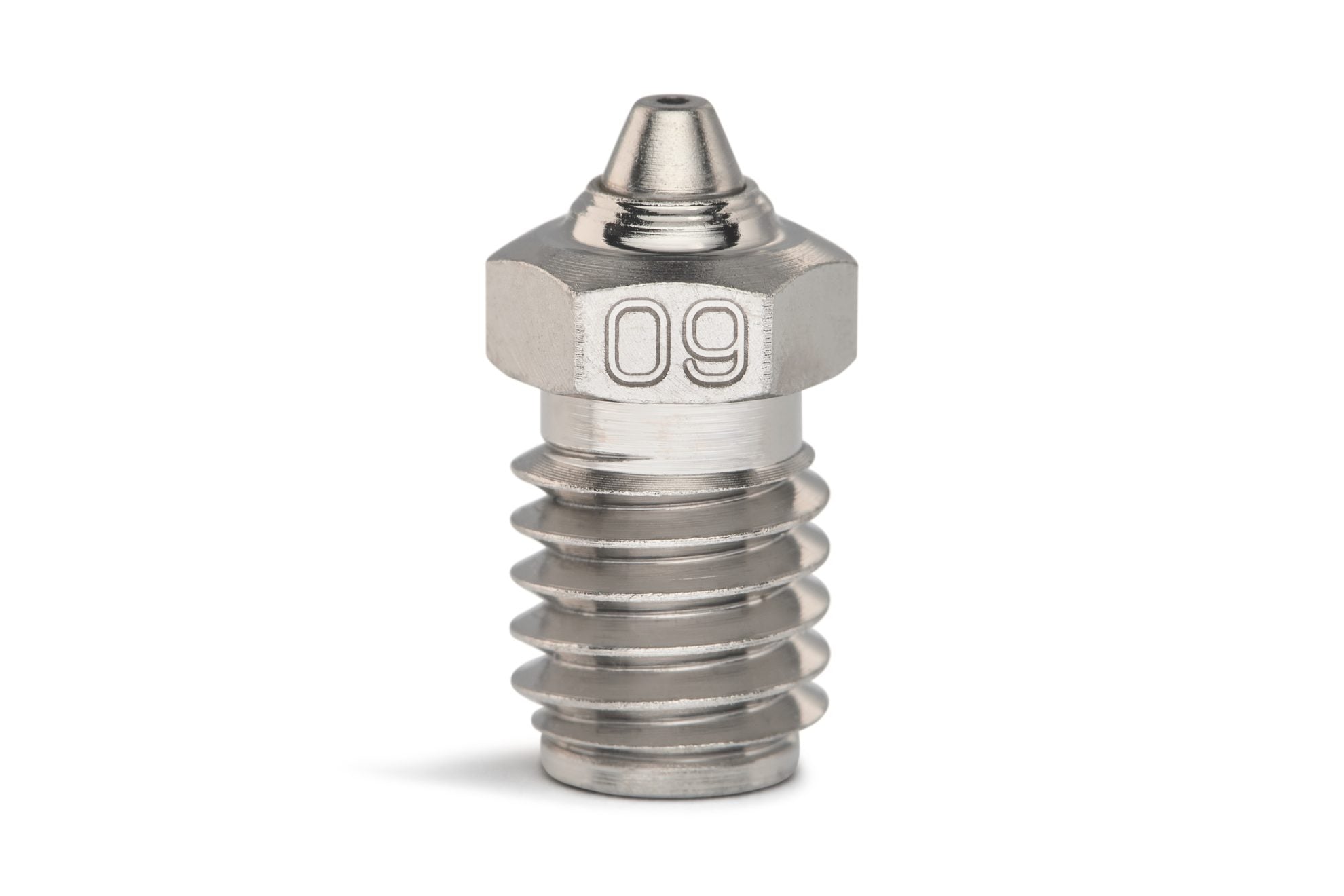

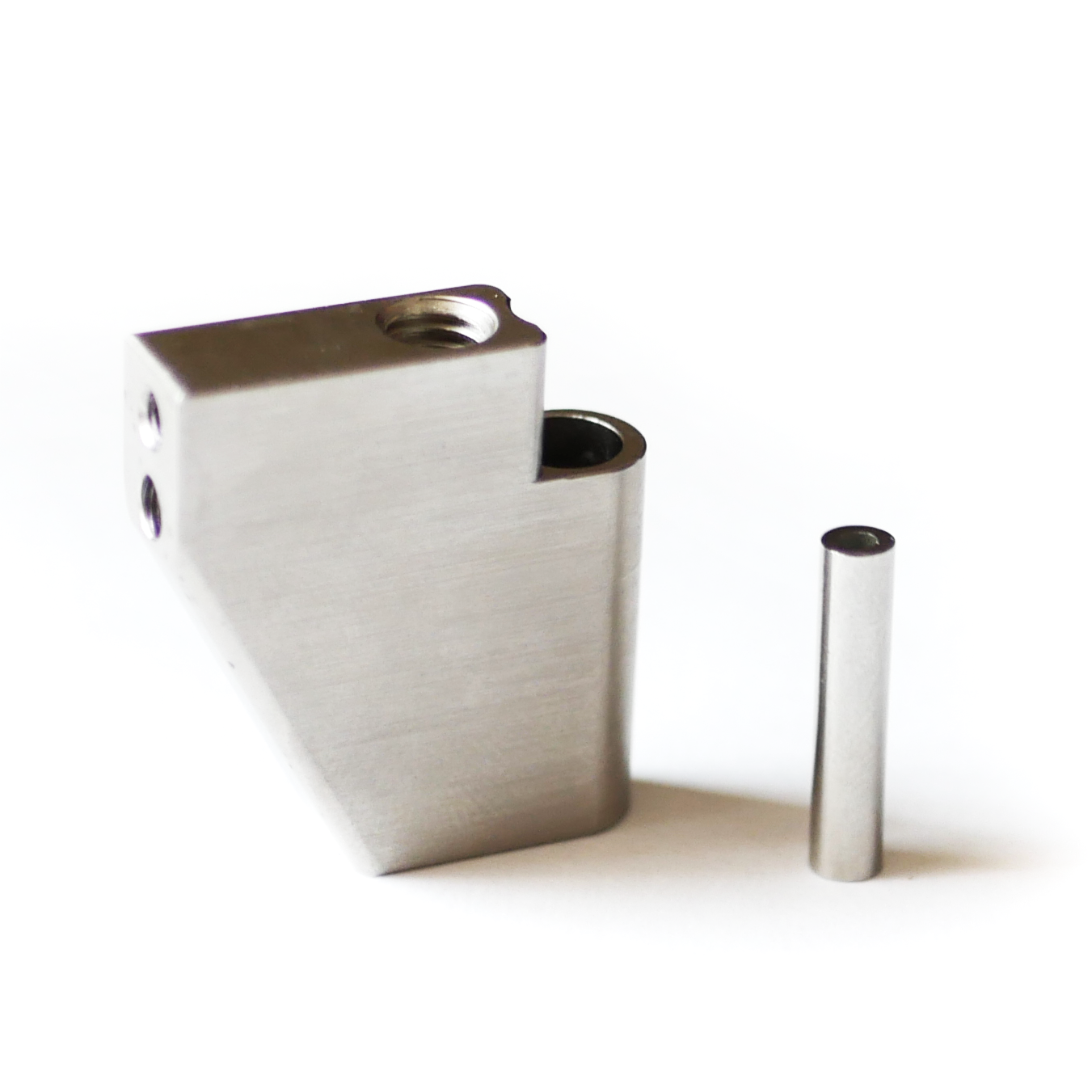

Proforge 4.1 Accesories/Spares
Proforge 4.1 Spec Sheet
Standard Feature Set:
4-Motor Drive QUAD-CORE-XY
Linear Rail Motion
400 x 300 x 400mm Build Volume
Up to 60k mm/s² Acceleration
Up to 800 mm/s Print Speeds
Hotend Max Temp.: 350C
Heated Bed Max Temp.: 120C
Ultra Flat 400x300mm Build Platform (+/- 0.1mm)
Removable Magnetic PEI Powder Coated Flexplate
4-point Auto Mechanical Bed Levelling with ABL Probe
Filament Sensors
Klipper Firmware
BTT Octopus MAX Control Board with EZ Drivers (40 Volt X/Y)

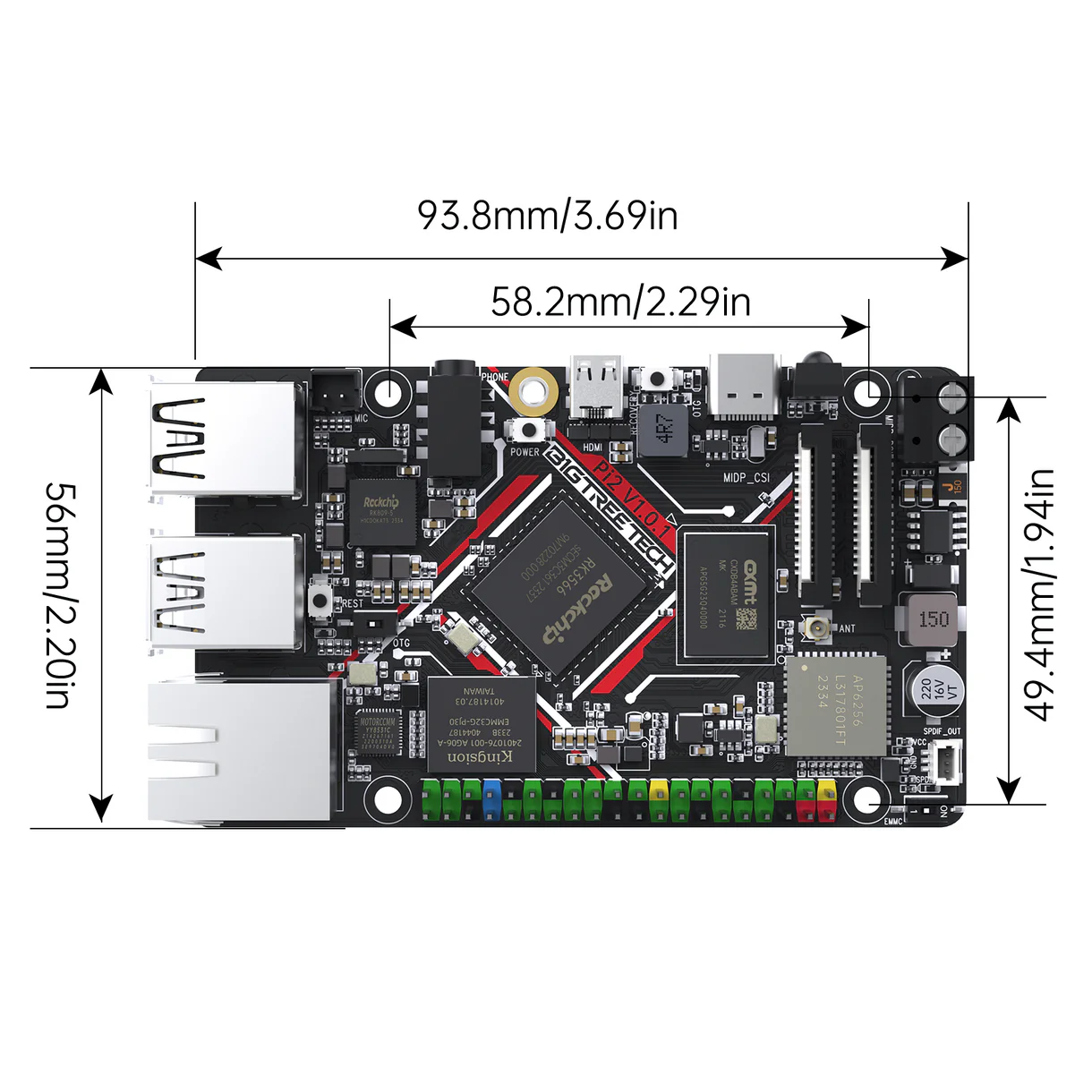

BTT Pi v1.2
WiFi Enabled
Webcam Monitoring
Open-Source
High Quality Brand Name Components (LDO, GATES, Meanwell, BigTreeTech)
UPGRADES:
Configurable to 4 Print Heads
Fume Filtered (Nevermore) Enclosure
5" Touch Screen Display
Proforge 4.1 Build Guides
The Proforge 4.1 is a kit machine and will require self assmebly.
Note, there is no soldering or crimping required for assmebly.
